crp::Primitive2D Class Reference

Class Primitive2D is an interface for all geometric primitives. More...

#include <primitives.h>

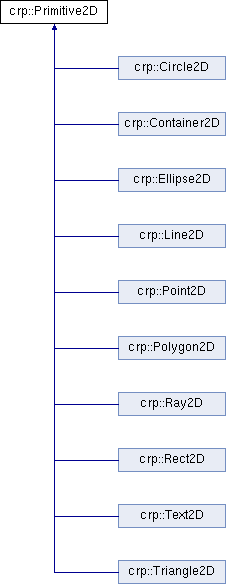

Inheritance diagram for crp::Primitive2D:

Public Types
enum	Type {   POINT_2D, LINE_2D, RAY_2D, RECT_2D,   CIRCLE_2D, TRIANGLE_2D, TRIPLET_2D, TEXT_2D,   POLYGON_2D, ELLIPSE_2D, CONTAINER_2D }
	Enumerates the primitive types. More...
Public Member Functions
	Primitive2D (double x=0.0, double y=0.0)
	Creates a new primitive.
virtual	~Primitive2D ()
	Destructor.
	Primitive2D (const Primitive2D &primitive)
	Copy constructor.
Primitive2D &	assign (const Primitive2D &primitive)
	Assignment operator.
virtual Type	get_type () const =0
	Type of the primitive.
void	set_color (double r, double g, double b, double opacity=1.0)
	Sets the color of the primitive.
void	set_color (const Color &color)
	Sets the color of the primitive.
void	set_opacity (double opacity)
	Sets the opacity of the primitive.
double	get_x () const
	Returns the x-Coordinate.
double	get_y () const
	Returns the y-Coordinate.
double	get_r () const
	Returns the red color.
double	get_g () const
	Returns the green color.
double	get_b () const
	Returns the blue color.
double	get_opacity () const
	Returns the opacity.
const std::string &	get_label () const
	Returns the label.
void	set_label (const std::string &label)
	Sets the label.
virtual void	set_position (double x, double y)
	Sets the position of the primitive.
virtual void	move (double dx, double dy)
	Moves the primitive by the given offset.
void	set_valid (bool valid)
	Sets the primitives valid status.
bool	is_valid () const
	Returns the primitives validity status.
int	get_index () const
	Returns the index of the primitive.
virtual void	set_index (int index)
	Sets the index of the primitive.
double	get_width () const
	Returns the width of the primitive.
virtual void	set_width (double width)
	Sets the width of the primitive.
virtual Primitive2D *	get_copy ()=0
	Copies the current primitive.
Protected Attributes
double	x
	Coordinates.
double	y
double	r
	Color.
double	g
double	b
double	opacity
double	width
	Width of the lines.
std::string	label
	Label.
bool	valid
	Validity flag.
int	index
	Index of the primitive.

---

Detailed Description

Class Primitive2D is an interface for all geometric primitives.

---

Member Enumeration Documentation

enum crp::Primitive2D::Type

Enumerates the primitive types.

Enumerator:

POINT_2D
LINE_2D
RAY_2D
RECT_2D
CIRCLE_2D
TRIANGLE_2D
TRIPLET_2D
TEXT_2D
POLYGON_2D
ELLIPSE_2D
CONTAINER_2D

---

Constructor & Destructor Documentation

crp::Primitive2D::Primitive2D	(	double	x = 0.0,
		double	y = 0.0
	)		[inline]

Creates a new primitive.

Parameters:

x	X-Coordinate
y	Y-Coordinate

virtual crp::Primitive2D::~Primitive2D

(

)

[inline, virtual]

Destructor.

crp::Primitive2D::Primitive2D

(

const Primitive2D &

primitive

)

[inline]

Copy constructor.

Parameters:

primitive

Primitive to copy

---

Member Function Documentation

Primitive2D& crp::Primitive2D::assign

(

const Primitive2D &

primitive

)

[inline]

Assignment operator.

Parameters:

primitive

Object to assign

double crp::Primitive2D::get_b

(

)

const [inline]

Returns the blue color.

Returns:

Blue color

virtual Primitive2D* crp::Primitive2D::get_copy

(

)

[pure virtual]

Copies the current primitive.

Returns:

New copy of the current primitive

Implemented in crp::Point2D, crp::Rect2D, crp::Line2D, crp::Ray2D, crp::Circle2D, crp::Triangle2D, crp::Text2D, crp::Polygon2D, crp::Ellipse2D, and crp::Container2D.

double crp::Primitive2D::get_g

(

)

const [inline]

Returns the green color.

Returns:

Red color

int crp::Primitive2D::get_index

(

)

const [inline]

Returns the index of the primitive.

Returns:

Primitive index

const std::string& crp::Primitive2D::get_label

(

)

const [inline]

Returns the label.

Returns:

Label of the entity

double crp::Primitive2D::get_opacity

(

)

const [inline]

Returns the opacity.

The opacity value is normally between 0.0 and 1.0.

Returns:

Opacity value

double crp::Primitive2D::get_r

(

)

const [inline]

Returns the red color.

Returns:

Red color

virtual Type crp::Primitive2D::get_type

(

)

const [pure virtual]

Type of the primitive.

Returns:

Type of the primitive

Implemented in crp::Point2D, crp::Rect2D, crp::Line2D, crp::Ray2D, crp::Circle2D, crp::Triangle2D, crp::Text2D, crp::Polygon2D, crp::Ellipse2D, and crp::Container2D.

double crp::Primitive2D::get_width

(

)

const [inline]

Returns the width of the primitive.

Returns:

Primitive width

Reimplemented in crp::Rect2D.

double crp::Primitive2D::get_x

(

)

const [inline]

Returns the x-Coordinate.

Returns:

x-Coordinate

double crp::Primitive2D::get_y

(

)

const [inline]

Returns the y-Coordinate.

Returns:

y-Coordinate

bool crp::Primitive2D::is_valid

(

)

const [inline]

Returns the primitives validity status.

Returns:

True if the primitive is valid

virtual void crp::Primitive2D::move	(	double	dx,
		double	dy
	)		[inline, virtual]

Moves the primitive by the given offset.

Parameters:

dx	New X-Coordinate offset
dy	New Y-Coordinate offset

void crp::Primitive2D::set_color

(

const Color &

color

)

[inline]

Sets the color of the primitive.

Parameters:

color

Color of the primitive

Reimplemented in crp::Container2D.

void crp::Primitive2D::set_color	(	double	r,
		double	g,
		double	b,
		double	opacity = 1.0
	)		[inline]

Sets the color of the primitive.

Parameters:

r	Red amount between 0.0 and 1.0
g	Green amount between 0.0 and 1.0
b	Blue amount between 0.0 and 1.0
opacity	Opacity value between 0.0 and 1.0

Reimplemented in crp::Container2D.

virtual void crp::Primitive2D::set_index

(

int

index

)

[inline, virtual]

Sets the index of the primitive.

Parameters:

index

New index

Reimplemented in crp::Container2D.

void crp::Primitive2D::set_label

(

const std::string &

label

)

[inline]

Sets the label.

Parameters:

label

New label

void crp::Primitive2D::set_opacity

(

double

opacity

)

[inline]

Sets the opacity of the primitive.

Parameters:

opacity

Opacity value between 0.0 and 1.0

virtual void crp::Primitive2D::set_position	(	double	x,
		double	y
	)		[inline, virtual]

Sets the position of the primitive.

Parameters:

x	New X-Coordinate
y	New Y-Coordinate

void crp::Primitive2D::set_valid

(

bool

valid

)

[inline]

Sets the primitives valid status.

Parameters:

valid

New validity status

virtual void crp::Primitive2D::set_width

(

double

width

)

[inline, virtual]

Sets the width of the primitive.

Parameters:

width

New width

Reimplemented in crp::Rect2D.

---

Field Documentation

double crp::Primitive2D::b [protected]

Reimplemented in crp::Ellipse2D.

double crp::Primitive2D::g [protected]

int crp::Primitive2D::index [protected]

Index of the primitive.

std::string crp::Primitive2D::label [protected]

Label.

double crp::Primitive2D::opacity [protected]

double crp::Primitive2D::r [protected]

Color.

Reimplemented in crp::Circle2D.

bool crp::Primitive2D::valid [protected]

Validity flag.

double crp::Primitive2D::width [protected]

Width of the lines.

double crp::Primitive2D::x [protected]

Coordinates.

double crp::Primitive2D::y [protected]

---

The documentation for this class was generated from the following file:

• primitives.h
